Product Center

  • Electrical Flip Up  Socket  EK9805
  • Electrical Flip Up  Socket  EK9805
  • Electrical Flip Up  Socket  EK9805
  • Electrical Flip Up  Socket  EK9805

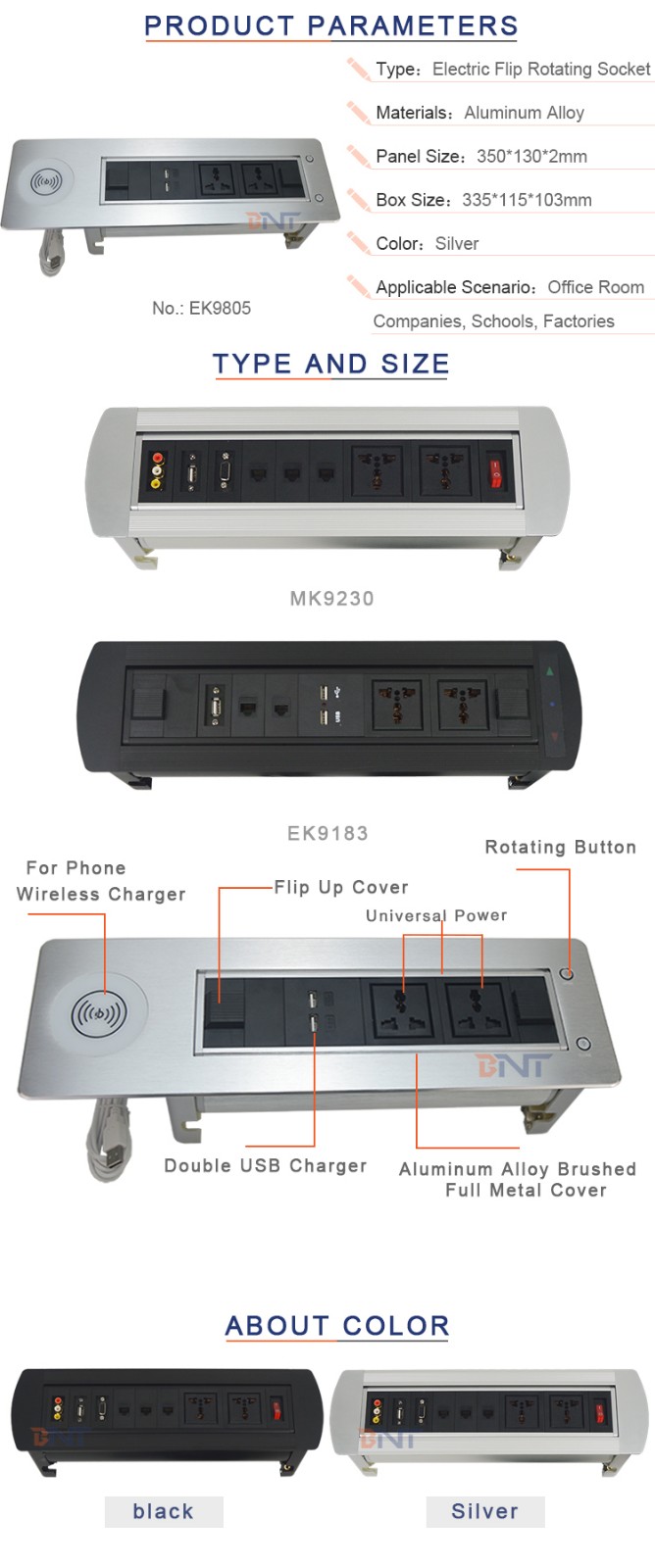

Name:Electrical Flip Up Socket EK9805
Model No::EK9805
Type:Electric Flip Rotating Socket
Material:Aluminum alloy
Color:Silver/Black
Configuration:2* Universal power +2*USB charger
Panel Size:350*130*2mm
Box Size:335*115*103mm
Panel Thinkness:3MM
Cable length:1.5 m (Length is available from 0.3m ~ 4.0m)
Rated voltage:110V ~ 240V AC
Rated current:10 ~ 13 Amp

Product Description

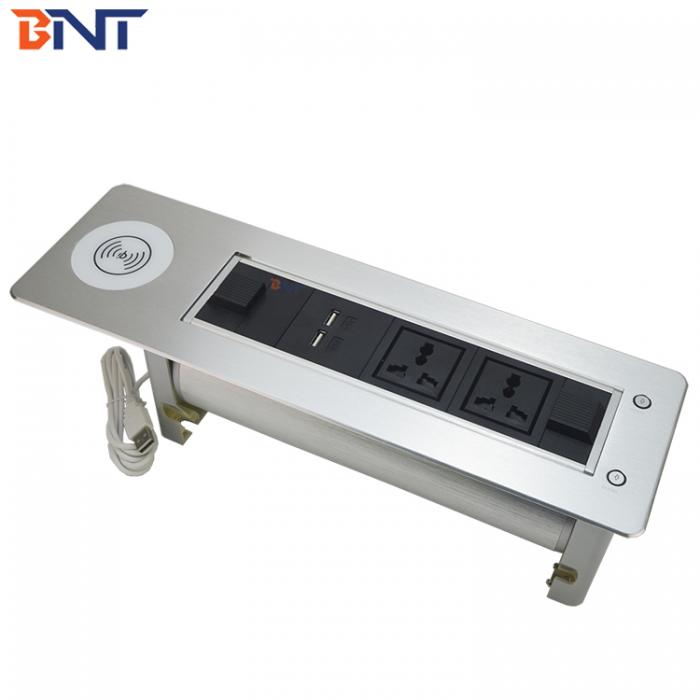

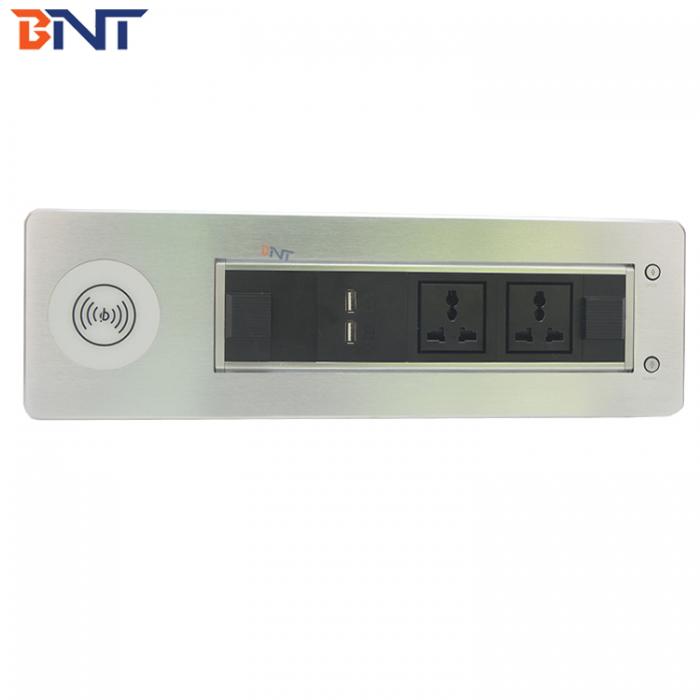

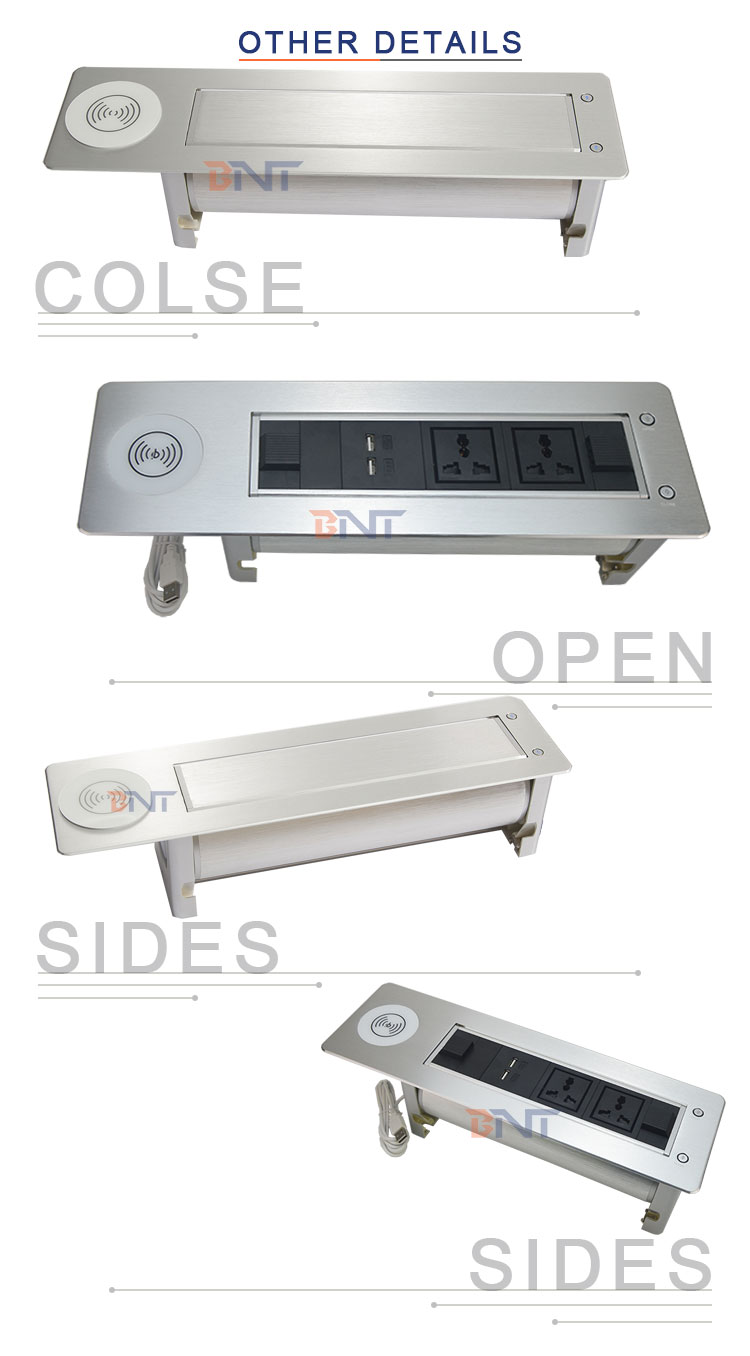

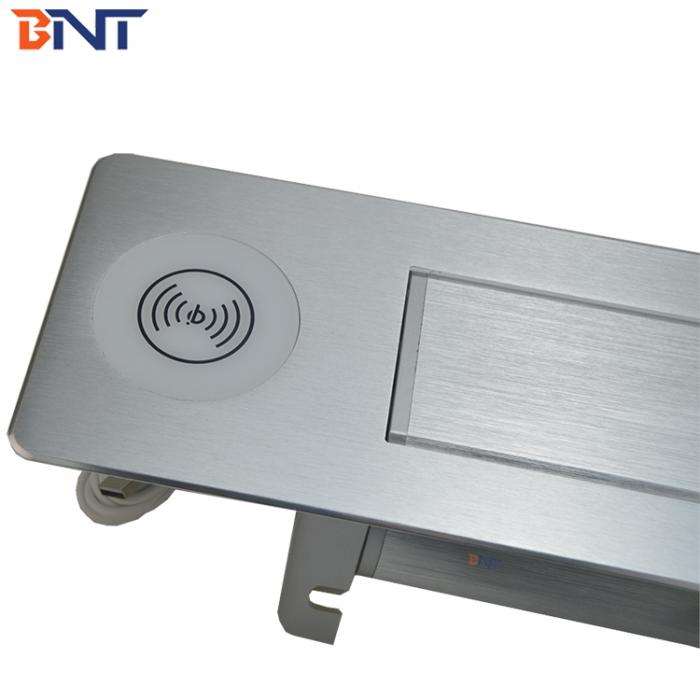

Aluminum Alloy Electrical Flip Up  Socket  with double USB charger EK9805

Keywords: electrical socket, desk socket, desk outlet,table socket, tabletop socket, desktop socket, table outlet, desktop-power-socket, hidden socket, hidden-desktop-socket, motorized-desktop-socket, flip-up-socket, manual-flip-up-socket table connector,conference table power oultlet, rotatable socket


Introduction:

EK series Electric Desktop socket is an innovative solution to provide electric, data and other AV interfaces on desktop office furniture. EK series Electric Desktop Socket is powered by an electric drive motor that rotate the sockets to the hidden position when unused. A photoelectric eye inside electric desktop socket will prevent rotation if there was an obstruction on the top of electric desktop socket during working.

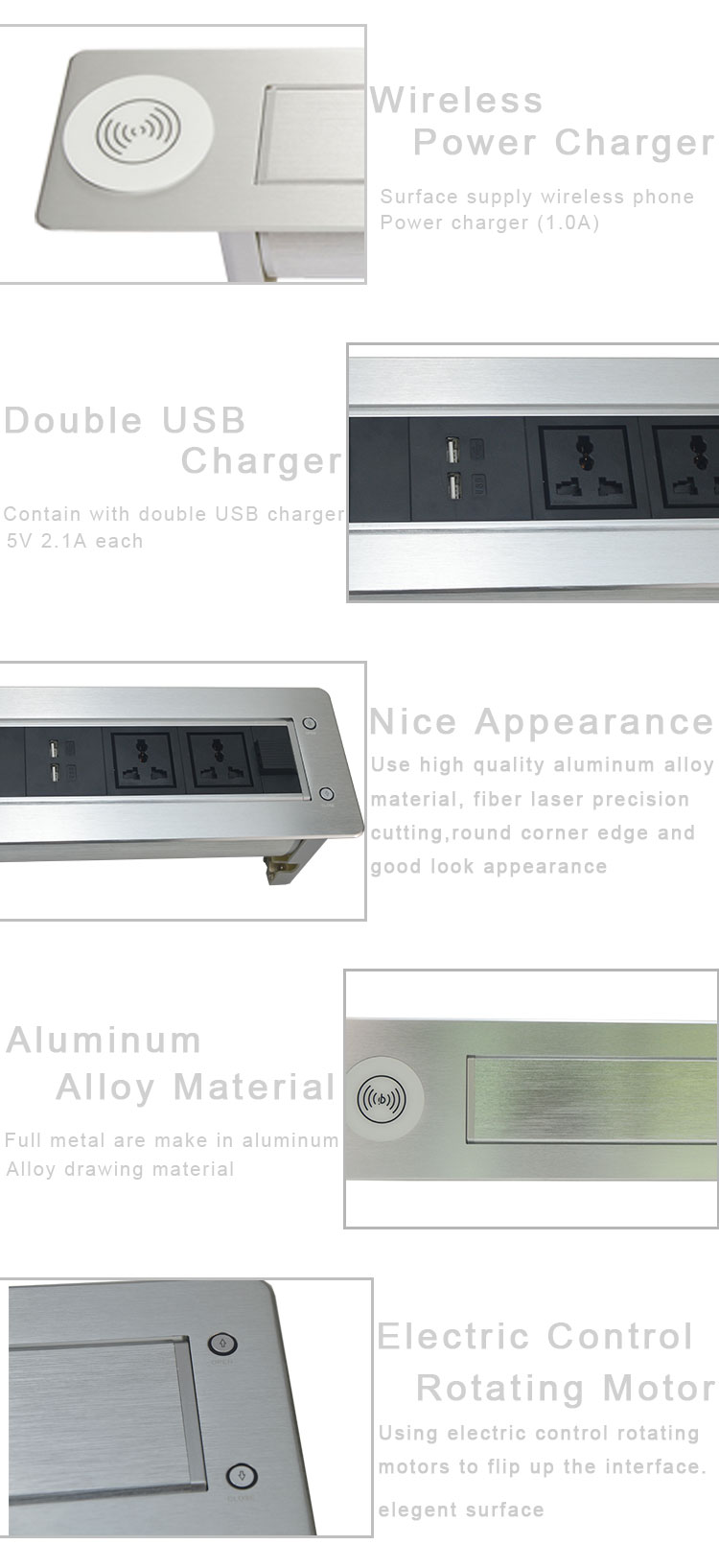

Feature:

1, Electric Desktop socket offer outlets for accessibility to electric, internet, telephone, VGA, HDMI,3.5 Audio, USB, MIC and could be customized for other data and AV interfaces.

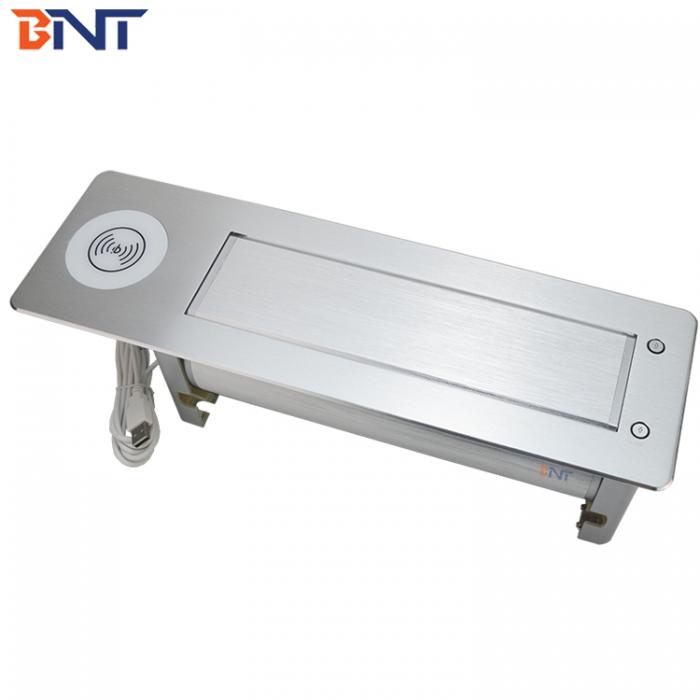

2, Electric Desktop socket rotate all sockets to the hidden position by press the touch button, to provide a clean and elegant surface of worktop. Also Electric Desktop socket prevent accidental spillage of fluids into the product.

3, A photoelectric self-lock device inside the Electric Desktops Socket prevent sockets from rotating if one of socket units is plugged. Also prevent cable damage and hand jammed during operation.

4, Electric Desktop Socket contain an electric drive motor, ensure reliable rotation and the ability to orient itself to the proper position.


Selling Points:

1, high quality aluminum alloy finishing with motors

2, white/black/gold color is available for color selection

3, Power plug and voltage could be changed accordingly.

4, OEM with logo on product and packing is available

5, Customized made is available


Specification:

Model No.EK9805
TypeElectric Flip Rotating Socket
MaterialAluminum alloy
ColorSilver/Black
Configuration2* Universal power +2* USB charger
Overturn angle180 degree
Panel size350*130*2mm
Panel thickness3 mm
Box Size335*115*103mm
Cable length1.5 m (Length is available from 0.3m ~ 4.0m)
Rated voltage110V ~ 240V AC
Rated current10 ~ 13 Amp
Warranty12 month
